Press pager(APE310), then the receiver(SC-R50) will receive the signal of pager, and someone will come to provide service.

For notifying waiters or other people.

Wireless fluid system is widely used in the service area. It includes the buttons for guests to use and the signal receiver for waiters to use. When the guest is in need, he or she just presses the button near him or her, his or her desk number will be displayed with music or vibration.

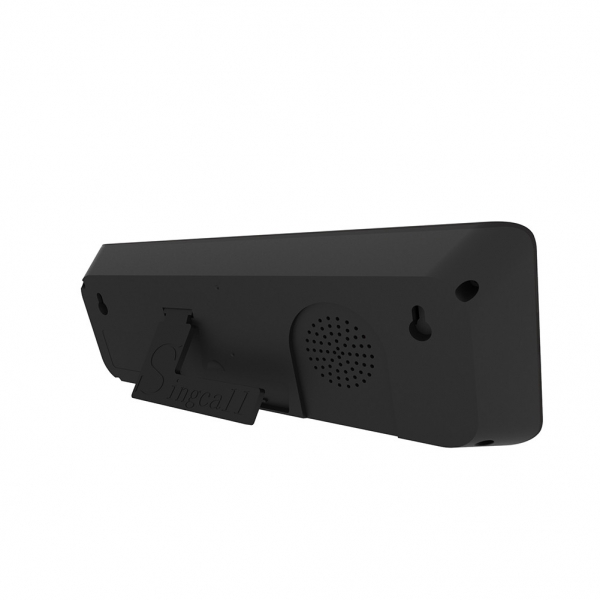

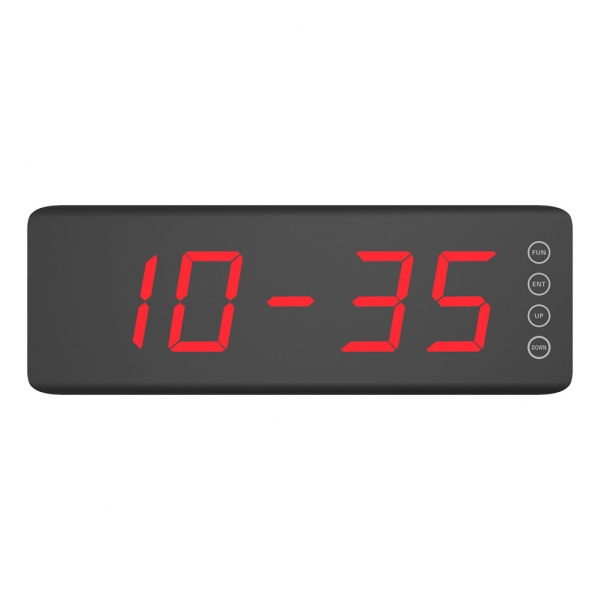

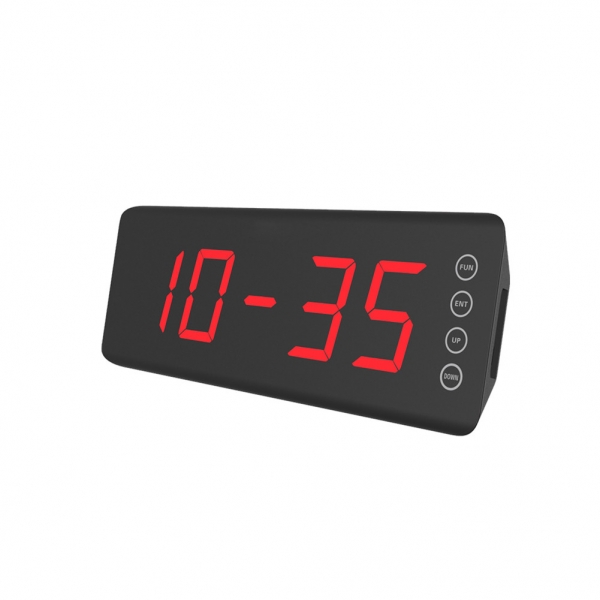

SC-R50(Wireless receiver):

01. Built-in antenna fixed receiver. Long signal distance, strong stability.

02. Touchable keys. Standby mode, showing the current time

03. 7 kinds of music, with voice reporting function, music length can be set.

04. With a 299 call extension, convenient and fast registration method

05. Two register modes are optional.(multi-key or single-key mode). Compatibility special multi-functional buttons(APE100) directly

Dimensions: 12.2*4.3*1.5 in(310*110*37mm)

Net weight: 1.17 lb(530g)

Installation: Table, Wall-hung, Hanging

Shell material: ABS

Surface treatment: dull polish

Display type: one group of 3-5 digits (can be set) having storage function

Power supply: 100-240V AC 50/60Hz -DC12V/1A

Prompt mode: 7 kinds of music, 3 kinds of scene voice reporting

Prompt music length: 2-30 seconds

Receiver sensibility: -114dBm

Frequency: 433.92MHz

Call button capacity: 299

English letter beginning display: A, B, C, D, E, F, H, P, L, J.

Display time: 1-99 seconds, or infinite

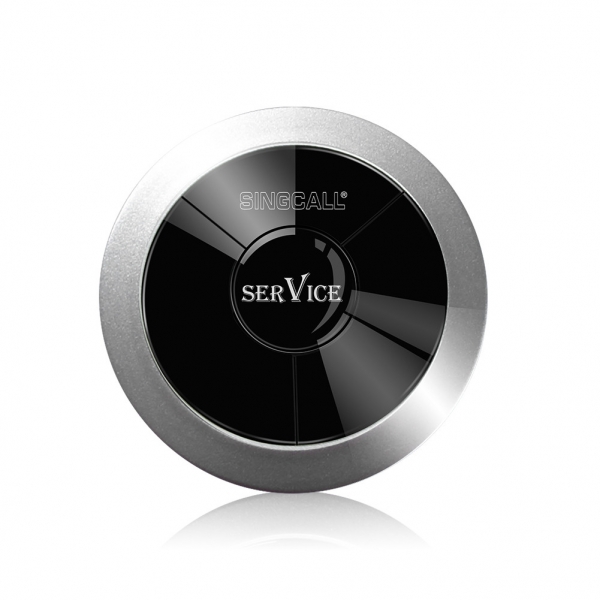

APE310(Pager):

01. Built-in silicone pad, 360 degree waterproof handling.

02. Small, thin, no screw, replace the battery easily.

03. Match to all of SINGCALL receiver.

04. Anti-temperature and humidity changes. Strong EMC anti-interference.

Size:2.56*2.56*0.65 inches(65mm*65mm*16.5mm)

Net Weight:0.08 lb(37g)

Material:PC Surface: Polishing , Spray painting, Frosting Key: PC

Frequency:433.92Mhz

Call distance: 130-200ft(40-60m) indoors, 1600-2600ft(500-800m) in the open air

EMI compatibility: In line with the national standard

Battery: Alkaline Battery 12V 23A

Battery life: 12-18months

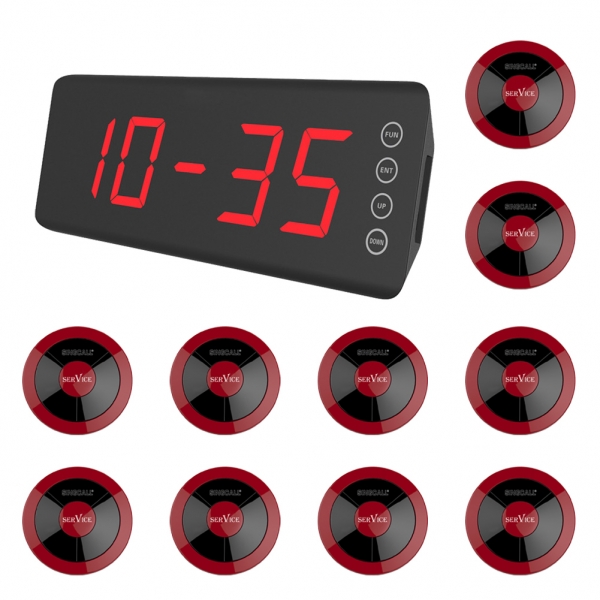

package include:

Receiver x 1

Pager x 10
