Put one-button pager(APE310) in the kitchen for cook to call waiter. And put three-button pager (APE130:Service,Bill,Cancel button) on the table for customer to call waiter. Press pager(APE310 or APE130), then the fixed receiver(SC-R50) and wrist receiver(APE6900) will receive the signal, then the number of pager will show on the screen of 2 kinds of receiver, someone will come to provide service.



For cook and customer notifying the waiters.

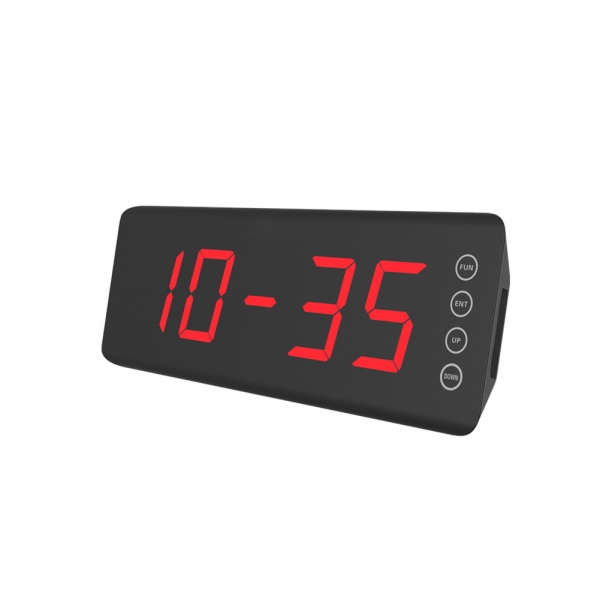

SC-R50 (Fixed receiver):

01. Built-in antenna fixed receiver. Long signal distance, strong stability.

02. Touchable keys. Standby mode, showing the current time

03. 7 kinds of music, with voice reporting function, music length can be set.

04. With a 299 call extension, convenient and fast registration method

05. Two register modes are optional.(multi-key or single-key mode). Compatibility special multi-functional buttons(APE100) directly

Dimensions:12.2*4.3*1.5 in(310*110*37mm)

Weight: 1.17lb(530g)

Installation: Table, Wall-hung

Shell material: ABS

Display type: one group of 3-5 digits (can be set)

Power supply: 100-240V AC 50/60Hz -DC12V/1A

Prompt mode: 7 kinds of music, 3 kinds of voice reporting

Prompt music length: 2-30 seconds

Frequency: 433.92MHz

Call button capacity: 299

English letter beginning display: A, B, C, D, E, F, H, P, L, J.

Display time: 1-99 seconds, or infinite



APE6900(Watch Receiver):

01. Waterproof.

02. Has calendar, clock and alarm clock function. Rechargeable battery, 5 days standby time.

03. With fast delete function, it can delete one registered number or all registered numbers with only one key.

04. Can download the registration information by charged software, makes the registration easier.

05. With encryption function, avoiding the information lost by mistake operation.

06. OLED screen, thinner, lighter and more flexible anti-seismic and knock.



Key number: 2 (FUN,ENT)

Number of display: 10 scrolling numbers

Display type: a group of 3 or 5-digit number (with storage function)

Battery capacity: 150mAh Vibration time: 1-15 secondsPager capacity: 500Prompt mode: Vibration onlyStandby time: 3 days

Calling number display: all positions can be set with English letter or digit(0-9, A-Z)

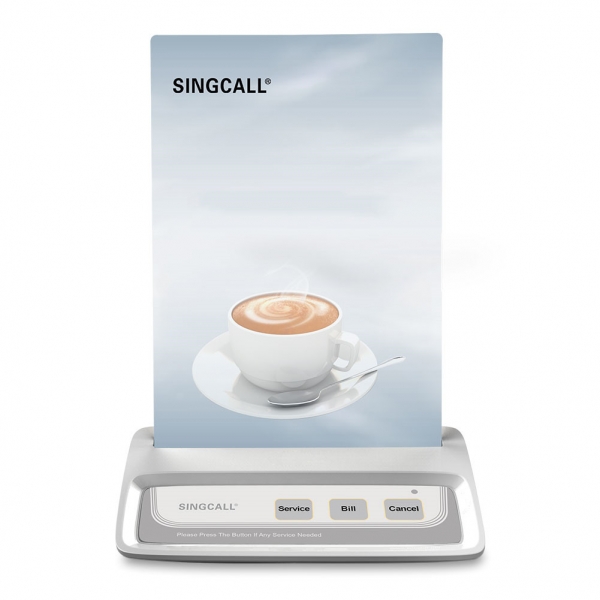

APE130(Three-button Pager):

01. Three keys to call, Service , Bill and Cancel. Match to all of SINGCALL receiver.

02. Special water-proof handling, practicability and security. Strong EMC anti-interference.

03. Registration of super stability. Anti-temperature and humidity changes.

04. Change the number at any time, super reusability.

Size: Base: 4.2*2.8*1.7 in(130* 70 *42mm)

Acrylic panels: 7.09*4.29*0.16in (180*109*4mm)

Weight: 0.37 lb(170g)

Material:ABS

Frequency:433.92Mhz

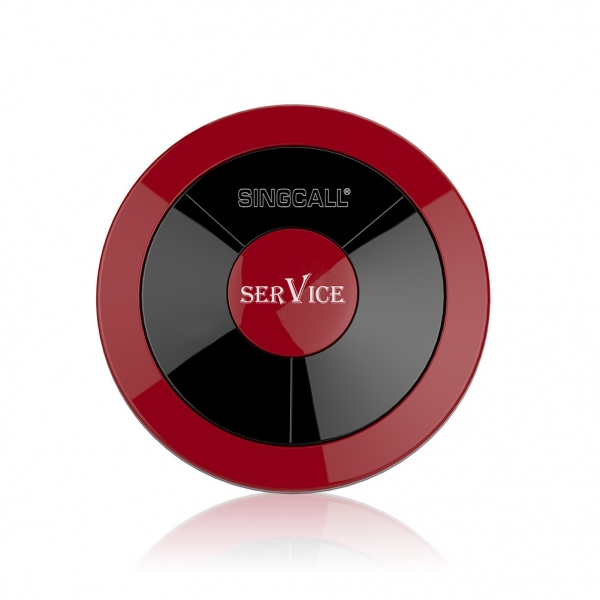

APE310(One-button pager):

01. Built-in silicone pad, 360 degree waterproof handling.

02. Small, thin, no screw, replace the battery easily.

03. Match to all of SINGCALL receiver.

04. Anti-temperature and humidity changes. Strong EMC anti-interference.



Size:2.6*2.6*0.7 in(65*65*17mm)

Weight:0.08 lb(37g)

Frequency:433.92Mhz

Call distance: 130-200ft(40-60m) indoors, 1600-2600ft(500-800m) in the open air

Battery: Alkaline Battery 12V 23A

Battery life: 9-12months



package include:

Fixed receiver x 1

Watch receiver x 2

Three-button pager x 3

One -button pager x 1
