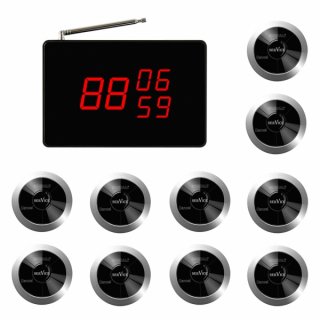

Press pager(APE520), then the receiver(SC-R50) will receive the signal of pager, and someone will come to provide service.

For notifying waiters or other people.

Wireless fluid system is widely used in the service area. It includes the buttons for guests to use and the signal receiver for waiters to use. When the guest is in need, he or she just presses the button near him or her, his or her desk number will be displayed with music or vibration.

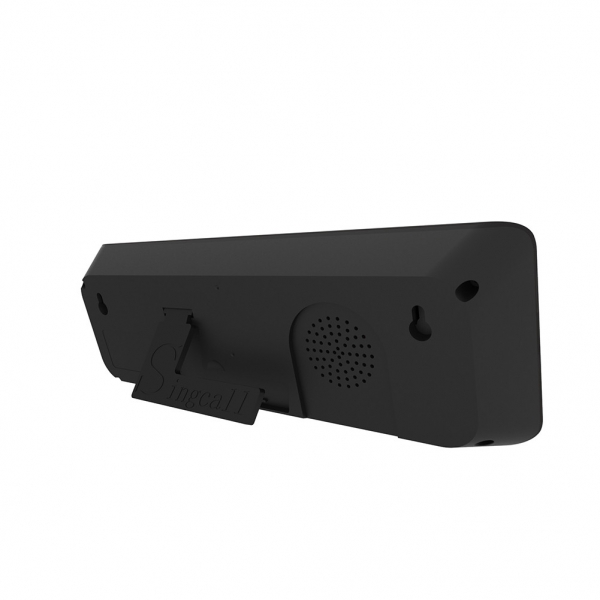

SC-R50(Wireless receiver):

01. Built-in antenna fixed receiver. Long signal distance, strong stability.

02. Touchable keys. Standby mode, showing the current time

03. 7 kinds of music, with voice reporting function, music length can be set.

04. With a 299 call extension, convenient and fast registration method

05. Two register modes are optional.(multi-key or single-key mode). Compatibility special multi-functional buttons(APE100) directly

Dimensions: 12.2*4.3*1.5 in(310*110*37mm)

Net weight: 1.17 lb(530g)

Installation: Table, Wall-hung, Hanging

Shell material: ABS

Surface treatment: dull polish

Display type: one group of 3-5 digits (can be set) having storage function

Power supply: 100-240V AC 50/60Hz -DC12V/1A

Prompt mode: 7 kinds of music, 3 kinds of scene voice reporting

Prompt music length: 2-30 seconds

Receiver sensibility: -114dBm

Frequency: 433.92MHz

Call button capacity: 299

English letter beginning display: A, B, C, D, E, F, H, P, L, J.

Display time: 1-99 seconds, or infinite

APE520(Pager):

01. 3.39*3.39in flexible square with big round button of 2in diameter, letting simple enlarge fashion.

02. The super big attractive button with 2in diameter, and the sensitive touching reaction , making the calling more convenient.

03.360 degree water-proof handling and the simple pushing bottom base without screws showing the humanized design and making it simple to change batteries.

04. Simple and stable login mode, the phenomenon of messy code does not appear. Signal is stable and long distance.

Designing with square and round, owning the simple and fashionable appearance

Super big touching button, make calling more convenient.

Full water-proof handling and simple pushing bottom base showing the humanized design Simple registration, far transmitting distance

Size:3.39*3.39*0.69in(86*86*17.5mm)

Transmitting distance:130-200ft indoors, 1600ft in the open air

Encode and decode mode: registration mode

Batteries: Alkaline Battery 12V 23A (*2)

Frequency: 433.92MHz

Frequency deviation: 0.5 MHz

contains screw*2, sticker*1 to fix pager

package include:

Receiver x 1

Pager x 10
